BOSCH MEDC17 TRICORE IROM/XROM BOOT-MODE WITH LOCKED MICROPROCESSOR

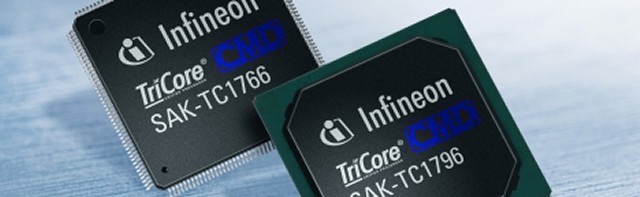

This new CMDFlash extension allow you to tune IROM and XROM of the new Bosch EDC17 and MED17 ECUs with locked Tricore microprocessor. The product is based on a new additional interface to be connected to the CMDFlash unit. We developed this new interface in order to give to the user the same friendly operative mode like BDM,  For all the EDC17 ECUs with the Bosch pads on the board ( like the old EDC16 BDM ) you just need the new provided EDC17 positioning frame probe, and no more extra-wiring will be required on the front ECU connectors. For some ecu boot resistors welding is required.  just press ID, read or write and the CMDflash interface will do everything automatically, exactly like the old BDM. We also provide cables for the ECUs like Mercedes EDC17 ( with the pads placed on the other side of the pcb ) you don't need to extract the pcb from the case.    Power supplied through the CMDFlash interface, no additional table power supply is required. Supported ECUs since now: MED17 MINI/PSA EDC17CP06 HONDA EDC17CP11 LANDROVER/JAGUAR ( TDV6 ) EDC17CP11 CITROEN EDC17CP01 MERCEDES (G320 / E350) EDC17CP10 MERCEDES (Sprinter) EDC17C08 KIA/HYUNDAI ( Soul ) EDC17CP09 BMW (x30D) MED17 FIAT-ALFA-LANCIA EDC17C19 OPEL ( Insignia ) EDC17CP02 BMW (120D/123D) MED17.x VAG EDC17CP14 KIA/HYUNDAI ( Sorento ) EDC17CP07 TOYOTA ( IQ ) EDC17CP04 VAG EDC17CP14 VAG EDC17CP20 VAG EDC17CP24 VAG EDC17U0x VAG MEV17.4 PSA EDC17CP22 VOLVO  EDC17C10 PSA ME17.8.5 SEA-DOO MED17.2 MINI EDC17CP19 RENAULT MED17.46 BMW EDC17C46 VAG MEVD17.2.2 MINI MEVD17.2.2 PEUGEOT EDC17CP44 VAG/PORSCE EDC17CP44  EDC17C41 BMW EDC17CP45 BMW EDC17C10 FORD MED17.9.1 KIA MEV17.2.2 MINI MED17.1.1 VAG MEVD17.2 BMW MEV17.4.2 PSA MED17 FORD/VOLVO EDC17CP27 JEEP EDC17C18 OPEL SID807 PSA SID807 FORD/VOLVO EDC17CP46 MERCEDES EDC17CP52 PSA EDC17CP42 LAND-ROVER/FORD ME17 SUZUKI EDC17C43 MERCEDES ME17.9.7 LADA EDC17CP52 IVECO TPROT-8/10 on VAG cars is supported. Newest ecu with new TPROT version may be locked. Don't use 3rd parts checksums, Full RSA checksum correction for all the cars is included in the plugin. Many ECUs have IROM or XROM or IROM+XROM configuration. The CMDFlash software automatically read all the ECU contents and saves it for backup in a special folder, in the meantime it extracts only the calibration data area, allowing you to save and tune it, so you don't have to search calibration data in IROM and/or XROM, CMDFlash will do it for you. The same for the writing. The CMDflash boot Kit includes: -CMD Boot interface + flat cable. -MPC004 EDC17 positioning frame probe, the probe is compatible with most of the positioning frames present on the market. -Mercedes EDC17 cable -Universal boot cable -CMDFlash Power supply -CMDFlash Protected MEDC17 Boot-Mode Plugin -RSA checksums for all the ECU Order can be done with credit-card on the reserved users area
